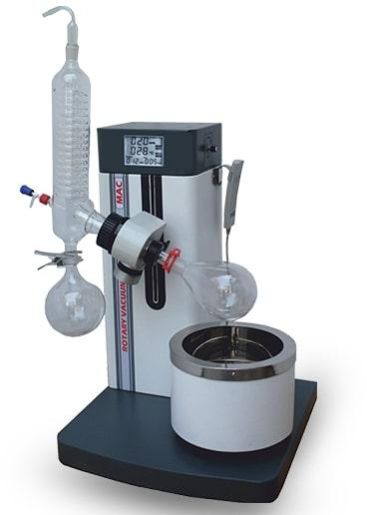

Rotary Evaporator with Vacuum Pump and Chiller
MOQ : 1 Piece
Product Details
Displays
LED (speed, temperature, time)
Heating Temperature Range
Room temp. to 180°C
Stroke Displacement
Automatic 150mm ± 5 mm
Vertical Stroke (Push N)
8000 N
Vertical Stroke (Motor)
5 Amp / 24 DC / 3400 rpm
Rated Load (24 V DC)
3.3 mm/s
Control Box (Transformer)
EI / TOROIDAL / SMPS
Control Box (IP Rating)
IP-66
Control Box (Certification)
IEC60601-1/ROHS / ES /UL60601-1
Time Setting Range
1-999min
Permissible Ambient Temperature
5-40°C
Permissible Relative Humidity
80%RH
Voltage/Frequency
200-240V 50/60 Hz
Features:
- Digital display of both rotation speed and heating temperature allows for optimal control of all distillation processes
- 5L heating bath with a wide temperature range from room temp. to 180°C)
- Speed range from 20 to 280rpm
- Vertical Cooling condenser with excellent cooling effect
- Corded remote-controlled lift mechanism ensures easy removal of evaporating flask
- PTFE vacuum seal accurate for leak-proof working.
- At the heart of our PROPLUS series is the touch screen graphical Programmable Logic Controller which delivers exceptional management with progressive notifications.
- Our PROPLUS series RVE’s have following unique features:
- Recording of operation parameter: Each RVE’s has a 7” TFT (TOUCH SCREEN) HMI AND PLC (PROGRAMMABLE LOGIC CONTROL) integrated unit with graphic devices which will automatically and continuously monitor and records dates, time of day, load identification number and operating parameters throughout the entire length of the rotary vacuum evaporator cycle and all data can be transferred via EPROM port by simply inserting a pen drive, which can easily be transferred to any PC/Desktop.
- Touchscreen PLC for accurate parameter control power failure restore and password protection up to 3 levels.
- User settable alphanumeric batch number and operator name
- Power failure restore
- 3 Level password protection
- User settable alphanumeric batch no. with the operator
- Printing in smart tabular format with date, time, batch number, operator name, and status
- Enables authentic documenting of every cycle (ON PEN DRIVE)
Optional:
- Power Back-up in case of supply description (for lifting Up/Down)
- Capacity : 1.2 Ah
- Input Voltage : 29 ~ 45 V DC
- Output Voltage : 24 V Dc, 1.2 A
- IP Rating : IP 66
- Automatic motor lift releases the evaporating flask to a safe position in case of power failure
- Overheating protection temperature at 220°C
- Oil Free Vacuum Pump
- Liquid Water Circulator Chiller
- Glassware & Accessories
Technical Specifications & Ordering Informations
Model |
#RVE-1(PROPLUS) |
#RVE-3(PROPLUS) |
#RVE-5(PROPLUS) |
#RVE-10(PROPLUS) |
Capacity |
1 Ltr. |
3 Ltrs. |
5 Ltrs. |
10 Ltrs. |
