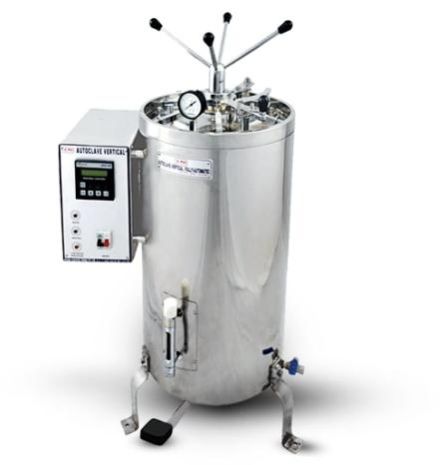

MSW-101(EX) Fully Automatic Digital Vertical Autoclave

MSW-101(EX) Fully Automatic Digital Vertical Autoclave

MOQ : 1 Piece

Business Type Exporter, Supplier
Brand Name MAC
Sterilizing Pressure 1.2 kgf /cm² (15 psi) at 121°C
Operating Pressure From 15psi to 22 psi (Adjustable)
Click to view more

Preferred Buyer From

Location Worldwide

Product Details

MOC (Pressure Vessel)
Stainless Steel (SS-304)
MOC (External Wall)
Stainless Steel
MOC (Top Lid)
Thick machined Stainless Steel plate
Basket
Stainless Steel (SS-304)
Power Supply
220/230V AC, 50/60Hz

Features:

  • MAC Fully Automatic Vertical Autoclave are most ideal for critical applications requiring assured and reliable total destruction of all living micro-organisms.
  • These are fully automatic models requiring no human intervention till a full sterilization cycle is over.
  • Inner chamber are made of Stainless Steel (SS-304 grade).
  • Outer body are made of Stainless Steel.
  • Heaters cover stand and carrier/bucket are made of Stainless Steel.
  • Lid made of thick machined Stainless Steel plate.
  • Radial locking lid ensures user safety and safe locking.
  • Radial arms are made of mild steel.
  • Legs are made of mild steel.
  • Rings are made of Stainless Steel.
  • Lid is fitted with Pressure Gauge, Spring Loaded Safety Valve, extra Safety Valve, Manual Exhaust Valve, Vacuum Breaker-cum-Purge Valve as a safety device and water level indicator.
  • Drain Valve facilitates easy cleaning of the chamber.
  • Moulded jointless silicon rubber gasket.
  • All internal joints are argon arc welded, ground and polished to give crevice free internals.
  • µProcessor based Controller with time and temperature programmable by user.
  • Class ‘A’ Platinum (Pt-100) sensor, enabling precise and accurate monitoring.
  • Low water level alarm and cut off for safety of heater.
  • Sensor open alarm and display.
  • End of cycle buzzer to alert the user and auto reset.
  • Miniature Circuit Breaker for MAINS On/Off plus safety of control panel.
  • Fitted with low-water level cut-off device.
  • Solenoid Valve for automatic purging and exhaust (user settable).
  • Industrial grade energy efficient heaters reduce power bills drastically.
  • To work on 220/230Volts, 50/60 Hz AC supply.



Optional

  • G-LOG – Fully automatic digital (FAD) with real time data logger with CENTRONIC PRINTER PORT (DOT MATRIX) and USB Port for taking data (Paperless Data Recording) and Saving ON PC. (DOT Matrix Printer to customer scope) (FOR DIGITAL MODEL ONLY)
  • P-LOG – Fully automatic digital (FAD) with real time data logger with CENTRONIC PRINTER PORT (DOT MATRIX) and RS-485 PC communication port with 21 CFR compliant software and data cable for logging data directly to your PC. (DOT Matrix Printer to customer scope) (FOR DIGITAL MODEL ONLY)
  • Validation documentation (Mapping) with (3+1) point temperature scanning for one cycle each on empty and loaded conditions (to cost extra) (FOR DIGITAL MODEL ONLY)
  • Drain/Exhaust cooling through a cooling coil condenser for condensate collection.
  • Spare Silicon Gasket to cost extra.
  • Spare Heater to cost extra.
  • TFT Touch Screen Display Controller in lieu of LCD display.
  • Circular chart recorder to cost extra (for Temperature only)
  • Circular chart recorder to cost extra (for Temperature and Pressure only)
Read More...

Yes! I am interested


Technical Specifications & Ordering Informations

Model #AVF-22(EX) #AVF-40(EX) #AVF-50(EX) #AVF-78(EX) #AVF-98(EX) #AVF-187(EX)
Inner Dimensions (Dia x Height) 250×450mm 300×500mm 350×550mm 400×600mm 450×600mm 550×750mm
Dimensions of Basket (Dia x Height) 225×300mm 275×350mm 325×400mm 375×450mm 425×450mm 525×600mm
Capacity 22 Ltrs 40 Ltrs 50 Ltrs 78 Ltrs 98 Ltrs 187 Ltrs
Heater Load 2.0 KW 2.0 KW 3.0 KW 4.5 KW 4.5 KW 4.5 KW
Controller (PLC Based) µProcessor Based Fully Automatic Fuzzy Logic Control System
Display 16×2 line Alphanumeric Digital LCD with backlet display with Set Value (SV) and Process Value (PV)
Timer (Auto Time Control) & Buzzer Fitted with AUTOMATIC DIGITAL MINUTE TIMER which starts automatically when set/desired value of temperature is achieved. When the set time period is over the heaters get switched off automatically with alarm for cycle end.
